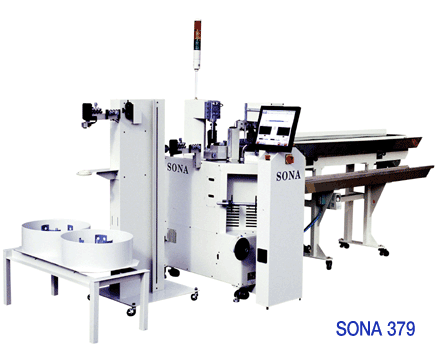

SONA 379

SONA 379

Product Specification
Name of Model

SONA 379

Power

AC 220V(single phase/ 3 phase), 50Hz/60Hz

Power used

4.5KW (Average power used 650 watt)

Size

Across: 1,400 mm, width: 799 mm, height: 1,860 mm

Processing Cable

AWG #14 to AWG#28 (2.0sq§® ~ 0.08sq§®)
AWG #12 (3sq mm) - By order production

Strip Length

Shear: : 0.1~30mm, tale :0.1~12mm

Production Capacity

4,000 pcs/Hr

Compressing Capacity

2.5 ton

Operating Field

Both ends compressing, single side compressing, half stripping

Stroke

30mm, 40mm

Weight

430Kgs

Equipment Driving Motor

Servo Moter 6

Air Pressure

6.0 bar

Characteristics

- Easy Customer service with INTERFACE design (separate controller and power supplier type)

- Improved inferior compress inspecting ability

- Improved inferior stripping and cutting inspect inspection ability

- With Strong power, you can process up to AWG #12~#30 (3.00sp mm ~ 0.08sp mm)

- With electronic crutch type of compressor, actualized producing high quality product and minimizing noise.

- Easy to operate all the functions.

- Compact design with easy maintenance




CE
